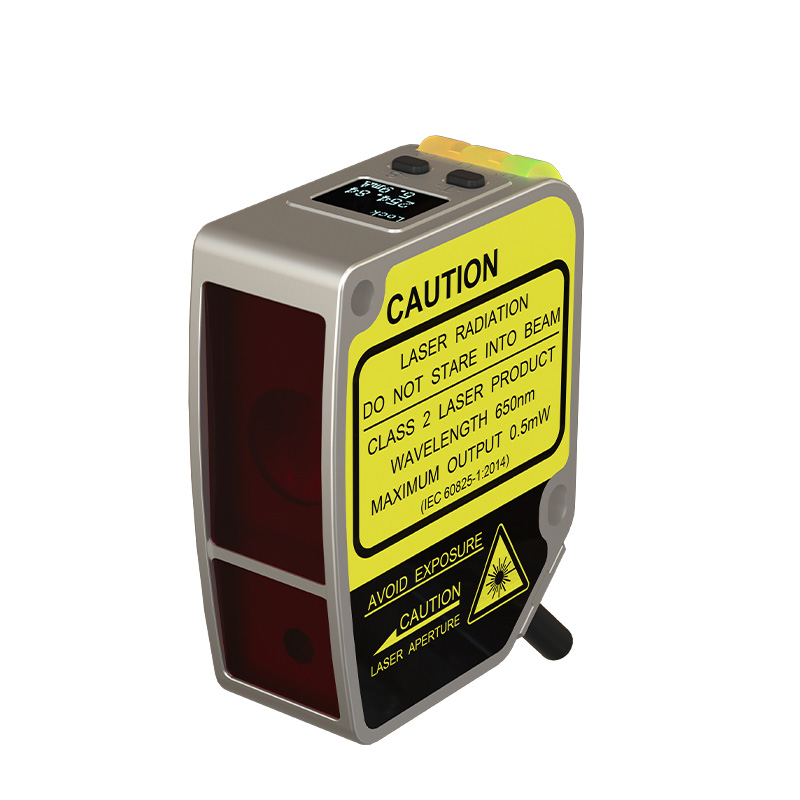

FLR-10-RS485 레이저 변위 센서

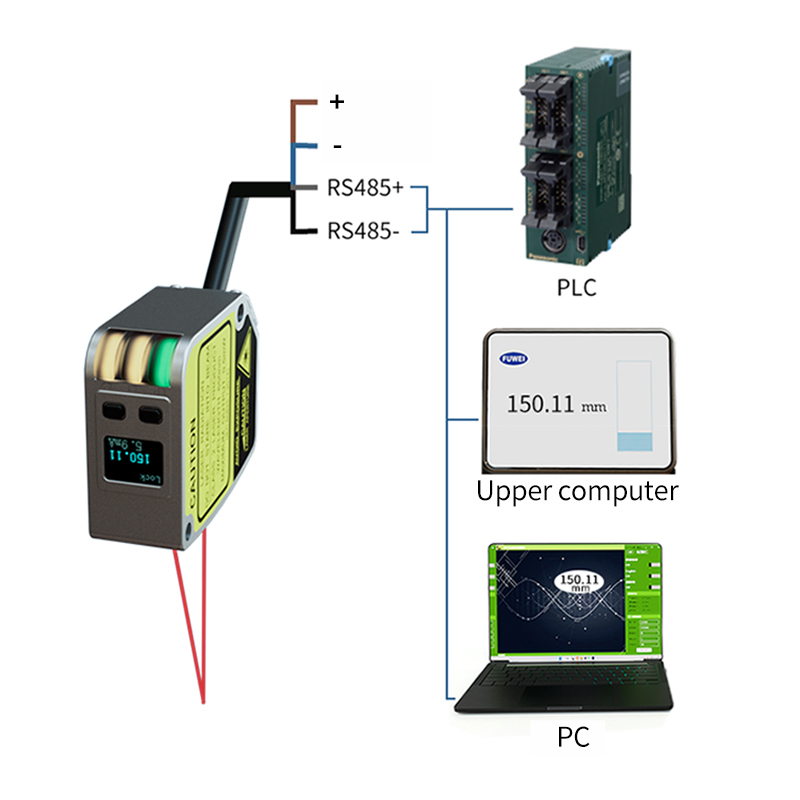

FLR-10-RS485 Laser Displacement Sensor Measuring range: 30-100mm Output mode: with switch quantity and RS485 communication (support ModBus protocol) Linearity accuracy: standard type: ±0.3% F.S. (30-100mm); high precision type: ±0.1% F.S. (30-100mm) Repeatability: 10um at 30mm; 0.1mm at 100mm Resolution: 5um at 30mm; 50u m at 100mm Spot size: 1*3mm at 100mm Response time: 2ms / 16ms / 40ms can be set up Ambient light resistance: incandescent light ≥ 3,000lux Operation panel: OLED digital display Temperature drift: ±0.02%F.S./°C
